Model

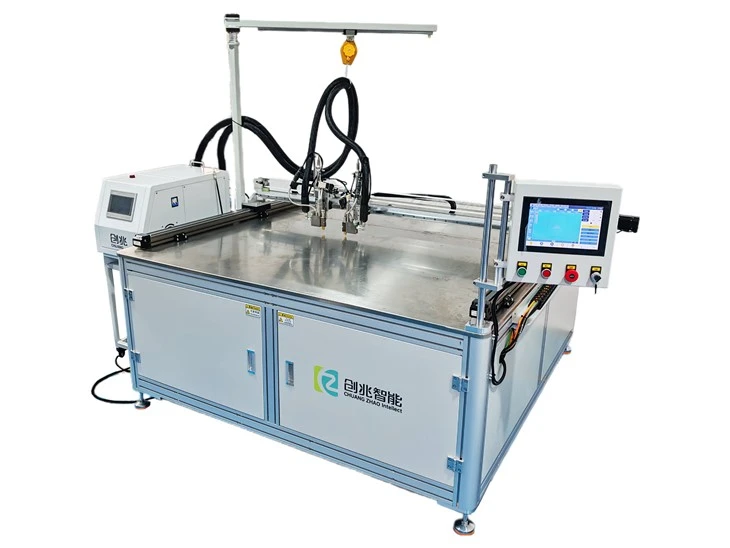

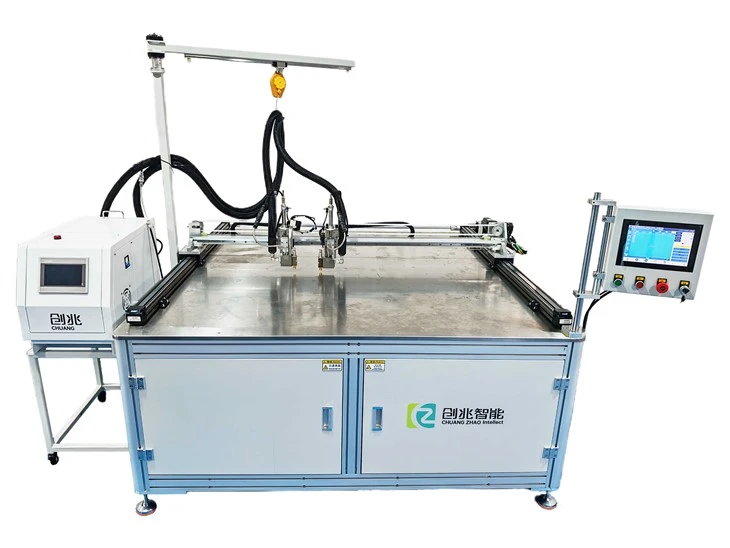

CZ-ER101-RR Hot Melt Adhesive Dispensing Machine
System
Independently developed software, flexible and simple operation, importing graphics is simple, industrial control diagram, easy to modify operating system

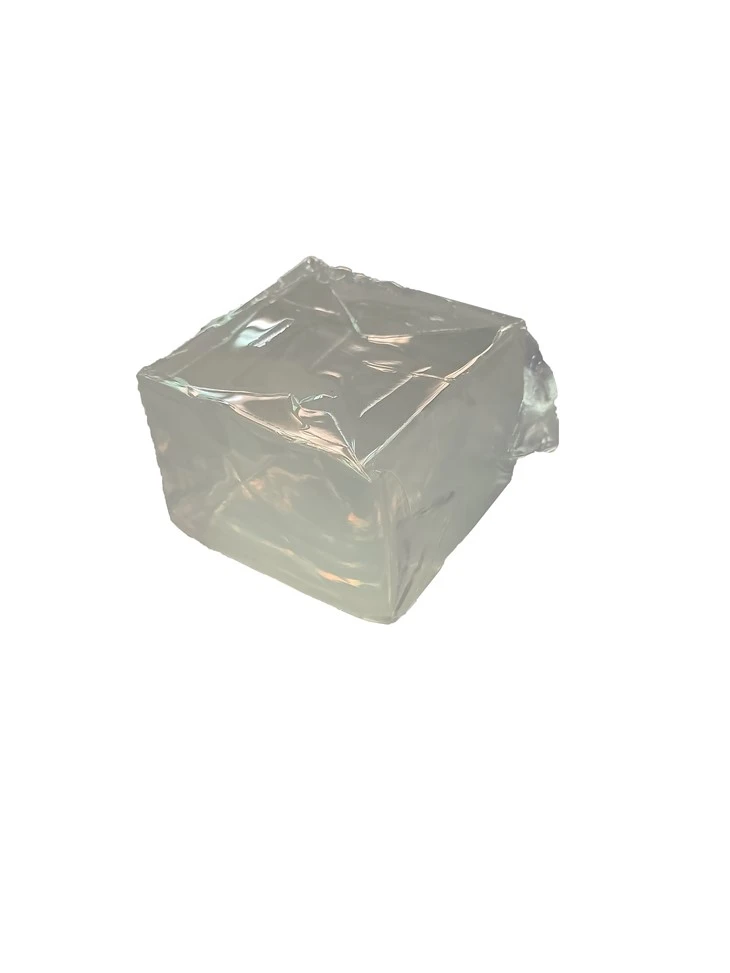

Adhesive Used
Hot melt glue
Steps For Using The Machine
- Put the hot melt glue into the heating box
- Set the temperature of the heating box
- Set the parameters of the equipment system, including the glue output of the equipment valves, the position of the drawings, etc
- After all parameter settings are completed, press the start button to start the device

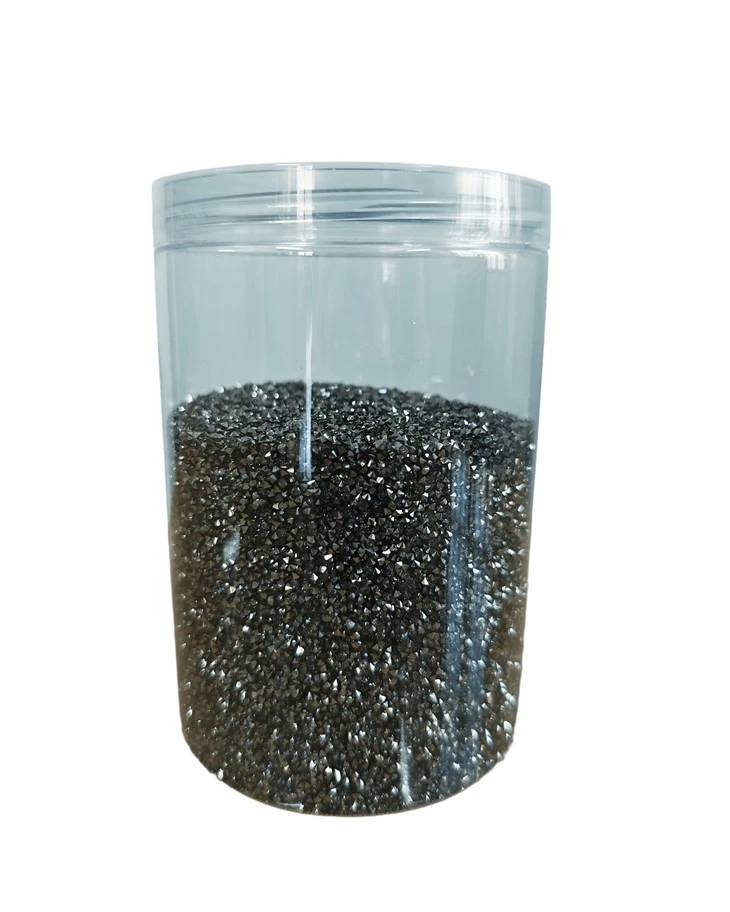

- After the gluing operation is completed, sprinkle your favorite rhinestones or glitter on the pattern
- Beautiful pattern completed
Glue Effect
- Draw lines
- Draw circles
- Draw dots
- Combine several patterns together
- Draw multiple diameter lines
Advantages Of Dispensing Valve
Double valve high efficiency, convenient for employees to work continuously, twice the work efficiency, saving labor, dedicated dispensing controller, stable dispensing, no leakage or dripping
Applicanle Industries
Clothing, leather, shoes, hats, scarves and other textile products
Industrial Control Device
Industrial control mechanism, accurate and simple positioning
| Working Trip(XYZ) | 1600mm*1300mm*40mm | Working Effect |
line, dot, arc, circle, pattern |
| Max Speed | 500mm/s (X/Y) | Power |
AC220V 50~60Hz 5.2KW |
| Accuracy | ±0.2mm | Machine Weight | 300kg |
| Dispensing Accuracy | ±0.2 | Machine Size | 2500mm*1730mm*2045mm |
| Drive Method | European scale group + servo motor | Glue Bucket | 5-liter hot melt adhesive bucket + glue hose + glue gun |
| Motor System | closed-loop motor | Working System | CRETECH Industrial Control System |
| Glue Dispensing Method | gear pump glue extraction | Machine Structure |
aluminum frame + sheet metal sealing plate |
