Model
CZ-ER103 PUR Spray Valve Jewelry Glue Dispensing Machine
System
Industrial Control Mechanism
Adhesive Used

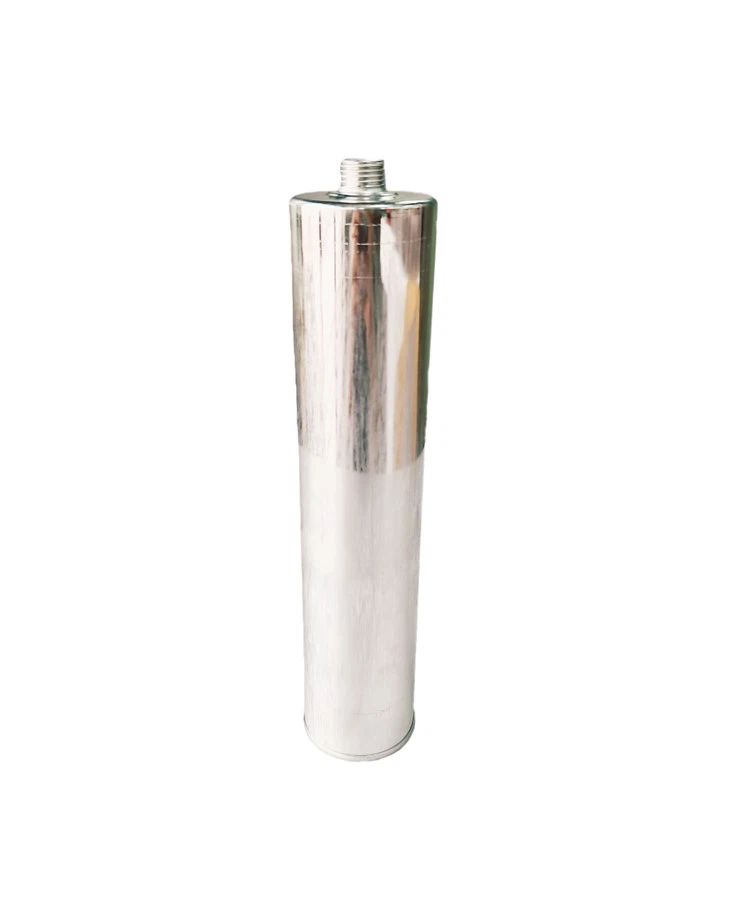

PUR glue
Steps For Using The Machine
- Place the PUR glue into the heating bucket of the dispensing valve.
- Set the parameters of the device system, including the temperature of the heating bucket, the glue output of the equipment valve, the position of the drawing, etc
- After all parameter settings are completed, press the start button to start the device.
- After the gluing operation is completed, sprinkle your favorite rhinestones or glitter on the pattern
- Beautiful pattern completed
Working Effect
- Draw Line
- Draw Dot
- Draw Circular Pattern
- Draw irregular pattern
- Combine various patterns to draw together
Equipment Advantages
- It is an automated device that reduces manual operation, so its work efficiency is high
- It is controlled by an industrial computer, so its dispensing positioning is precise
- It adopts a dedicated dispensing controller, which ensures stable dispensing and no leakage
- It has a larger workbench than the standard PUR dispensing machine
Application
Textiles such as clothing, leather, shoes, hats, scarves
Product Parameters
| Scope Of Work(XYZ) | 1600mm*1300mm*40mm | Control Mode | line, circle, arc, dot |
| Maximum Speed | 500mm/s (XY) | Working Power | AC220V 50~60Hz 2KW |
| Accuracy | ±0.2mm | Machine Size | 2500*1730*1400mm |
| Glue Dispensing Accuracy | ±0.2 | Glue Bucket | 300ml PUR glue bucket+A set of high-speed injection valve |
| Transmission Method | European standard module+servo | Machine Weight | 600KG |
| Motor System | closed-loop motor | Operating System | CRETECH Industrial Control Mapping System |
| Glue Dispensing Method | gear pump glue extraction | Equipment Structure | aluminum frame+sheet metal sealing plate |
