Category |
Model |
CZ-T8LSX01 |
|
Overall Parameters of the Assembly/Unit |
Name |
Assembly Line Lighting |
|
Operating mode |
Automatic glass tube insertion - manual power supply positioning - manual soldering - automatic head blocking with glue - manual power supply installation - manual head blocking installation - automatic wire cutting - automatic riveting - automatic bright defect detection - automatic aging connection with aging - automatic aging off line - automatic power measurement and tin removal - automatic high voltage measurement and tin removal - automatic length measurement and tin removal - self-adhesive interconnection (or laser marking) - automatic flow to packaging line. |
|
|
Common dimensions |
600-900-1200MM |
|
|
Production capacity |
1000PCS/H, according to the old 30-minute calculation. |
|
|
Plug |
Aluminum plug (outer diameter: 28-28.5, plug length within 50mm) |
|
|
Power cord |
Soft wire, non-rebounding wire |
|
|
Lamp tube |
Glass lamp tube (outer diameter: 25.4 ± 0.6) |
|
|
Fuse wire |
Prepare the secondary plug fuse wire in advance. |
|
|
Total length of the line |
Assembly line dimensions: 9000mm (length) * 1800mm (width) * 730mm (height). Aging line dimensions: 10000mm (length) * 1800mm (width) * 730mm (height). Post-testing line dimensions: 3000mm (length) * 1800mm (width) * 730mm (height). |
|
|
Assembly line parameters |

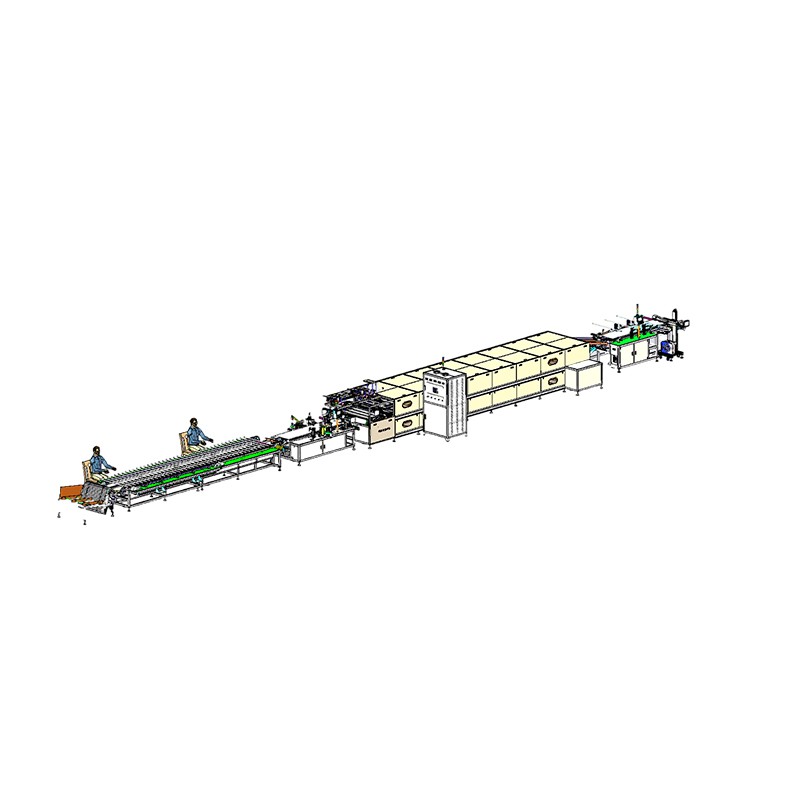

Assembly line overall description |
The straight-line assembly line can horizontally transport LED T8 glass tubes. Long table-type assembly workbenches are equipped on both sides, which can be adjusted synchronously with the machine width. The center-to-center length is 8.5, with a chain pitch of 50.8mm. The effective working surface can accommodate 160 tubes. One tube is transported at a time, and the tube length can be adjusted to 1200mm/900mm/600mm. Overall motion: The working width is adjusted by a manual adjustment system. The equipment is equipped with parallel guide rails for lamp feet alignment, length measurement, and tube electrical detection devices. The equipment is controlled by a Siemens PLC+touchscreen control system, and the speed can be randomly adjusted through a frequency converter. The line cycle time is 3 seconds, and the production capacity is approximately 1000 pieces per hour. |
|
Wire cutting station |
two sets |
|
|
Rivet point station |
two sets |
|
|
Brightness measurement and elimination station |
one set |
|
|
Power fixture auxiliary line |
300OMM unilateral, 118 power fixtures |
|
|
Workbench surface |
Bilateral 330mm, chrome-iron heads, placed in four cabinets |
|
|

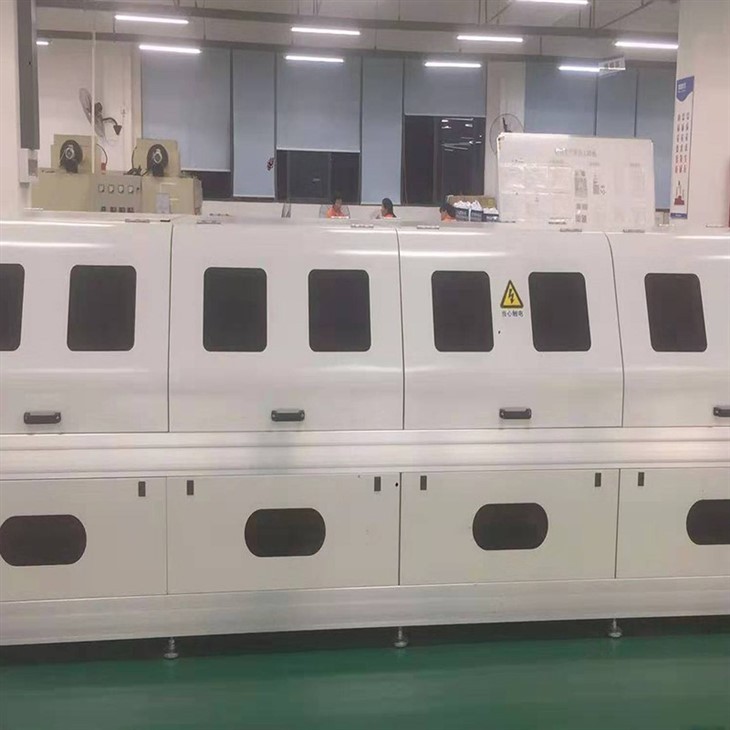

Aging line parameters |
The aging workstation is being described |
Aging line for LED tube. The length is approximately 10 meters and it has upper and lower rotating layers. The entire machine consists of 100 stations, with 5 tubes per station, for a total capacity of 500 tube positions. The intermittent transmission of the tubes is completed by manual handling at one end of the machine. The machine is adaptable to tube lengths of 1200mm, 900mm, and 600mm. There is a dividing platform at the front end to separate the tubes at the desired spacing and align the pins parallelly. The equipment is equipped with a PLC and a touchscreen automatic control system, and random adjustments can be made through the touchscreen interface. The estimated production capacity is around 1,000 tubes. |
|
Aging automatic lamp mounting mechanism |
One set |
|
|
Aging automatic lamp mounting mechanism |
One set |
|
|
Aging method |
Single-ended, double-ended (rectifier options available) |
|
|
Aging forming and fitting tool |
100 sets |
|
|
Aging mode |
High pressure, atmospheric pressure. Impact, low pressure. |
|
|
Rear Side Measurement Parameters |
Overall Description of Post-Testing Line |
Post-testing area, implementing online automatic length measurement, automatic high-pressure measurement, automatic power measurement, automatic online marking or online automatic laser printing, and online rejection of defective products from all workstations. |
|
Brightness Testing and Reject Station |
One set |
|
|
High Voltage Testing and Reject Station |
One set |
|
|
Length Measurement and Reject Station |
One set |
|
|
Auxiliary Station |
One set of labeling or marking station (excluding labeling machine and marking machine) |
|
|
Note |
In the future, each section will be purchased separately |
|
