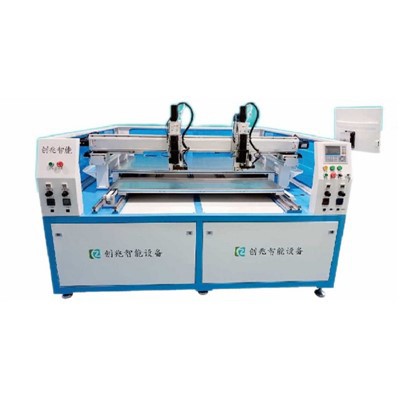

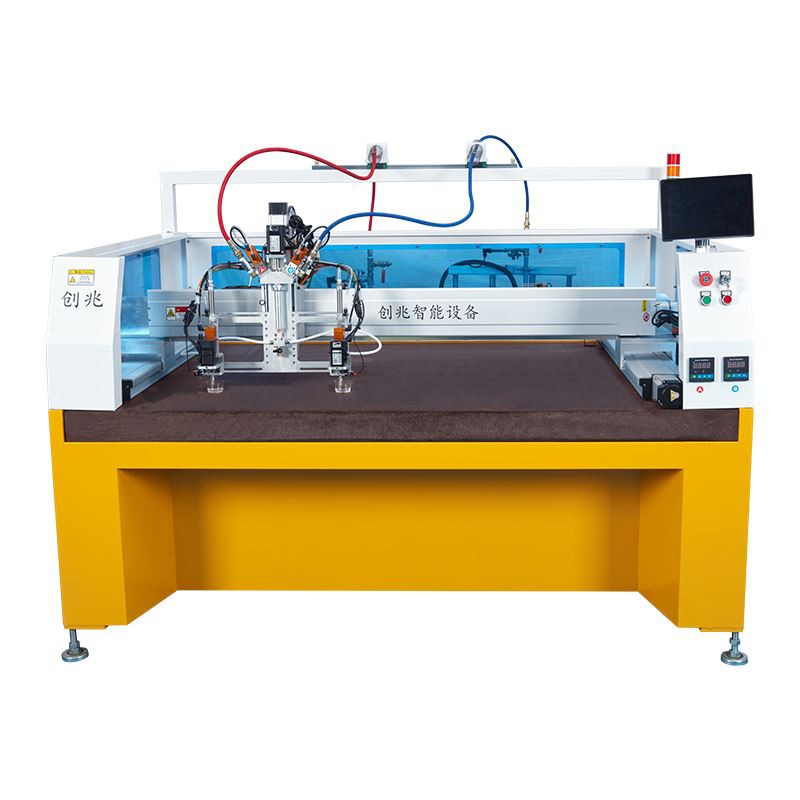

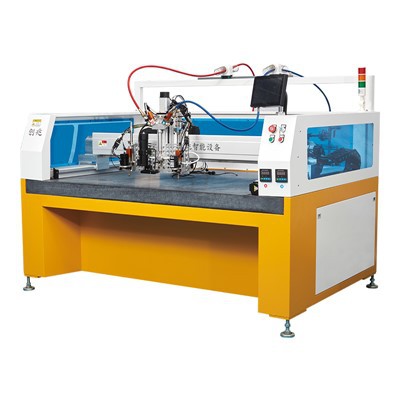

Adhesive Machine

Machine System:

The self-developed software is easy to operate, providing flexibility and simplicity. The adhesive machine allows for easy import of graphics, with simple industrial control diagrams and an intuitive operating system. The system supports multiple layers, each of which can be configured with different adhesive strip sizes. It can handle both flat and circular strips, flat strips with scraper blades, and circular strips with scraper blades. The line width can be adjusted from 1.5mm to 10mm, the flat strip width can be adjusted from 2mm to 8mm, and the scraper blade width can be adjusted from 6mm to 30mm. The thickness can be adjusted from 0.4mm to 40mm. When using the same type of line for lingerie, two pieces can be processed at once.

Working Valve:

The AB dynamic mixing system ensures uniform mixing and precise dispensing. The dispensing valve provides high accuracy and delivers clean finishes.

Two Valves Benefits:

It can glue two pieces of underwear according to the operator's needs, which is beneficial for improving efficiency and saving time.

Structure:

The valve operates through a screw, so the dispensing accuracy is high and there will be no displacement or bending of the glue. The screw is controlled by the device computer, so as long as the operator sets the relevant parameters for the screw operation on the computer, there is no need to repeatedly modify it later.

Working Effect:

The dispensing effect is excellent, with no bead formation, no tailing, no glue stacking, no droplet or stringing, and uniform line width. It can achieve ideal dispensing performance with both thin and thick adhesives.

Question And Answer

Question: Is this device easy to operate?

Answer: It controls the device through a computer system. Once the staff has set the parameters, they only need to stand next to the equipment and wait for it to work.

Question: Does your company have after-sales service for its products?

Answer: Yes, we do. Our company's after-sales service is one year, and even after one year, we only charge a basic after-sales fee.

Question: What styles of underwear can this device produce?

Answer: It can be adjusted according to customer needs and produce various models of seamless underwear.

Product Details:
