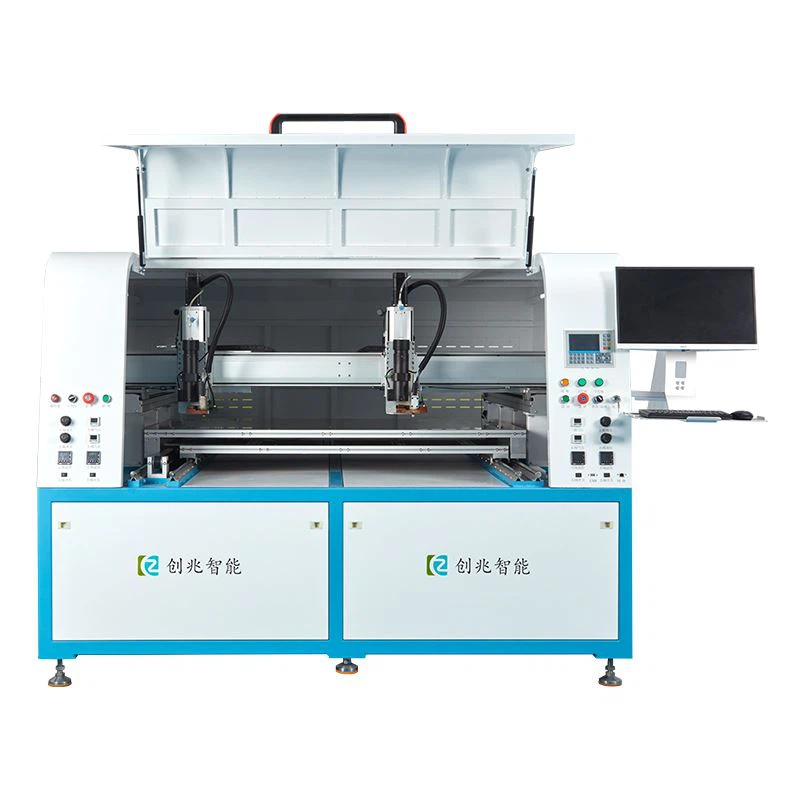

Glue Dot Machine

Glue Dot Machine

This device can be used to glue underwear or other clothing.

Product Introduction

System:

  1. Glue dot machine allows users to import simple graphics and modify them conveniently.
  2. The operating system is user-friendly, making it easy for staffs to operate.
  3. The computer system of this machine can set four different parameters.
  4. This device can draw glue with shapes such as points, lines, curves, circles, etc.



Machine Advantages:

  1. Efficient: The machine can dispense glue to 2 pieces of underwear at the same time.
  2. Safety: As it is an automated device, employees can wait on the side while the machine is working, ensuring safety.
  3. Excellent precision: Due to the automated screw operation during machine dispensing, it can achieve high precision.
  4. High yield: It is operated automatically and does not require manual labor, so the yield is high.



Glue Dispensing Result:

Multiple sizes of dots: Glue dot machine can produce dots with diameters ranging from 0.4mm to 4.0mm.



FAQ



Q: What does the two componet of this device mean?

A: Two component refers to the device being able to operate two dispensing valves simultaneously, working for two pieces of underwear.



Q: Is the quality of this device reliable?

A: Our equipment quality is very good, and we have sold it to many overseas customers and gained a good reputation. If there is a problem with the equipment, we can provide a 1:1 repair service.



Q: Is the dispensing effect of this device good?

A: Its dispensing effect is excellent, whether it is PUR dots or silicone strips, there will be no uneven amount of glue.




Technical Specifications:

Glue Dot Machine CZ-NY200

Way Of Working

Dual-valve dual-position switching

Shape Point, line, circle, square glue

Type Power Supply

AC220V 50~60HZ3KW

Dual XYZ Axis Travel

The single workstation has a travel range of 500mm700mm100mm.

Maximum Speed

700mm/s

Adjustable Temperature

0~350℃

Repeatability

土0.01mm

Overall Weight

800kg

Dispensing Accuracy

土0.0001

Device Dimensions

2300mm*2100mm*1620mm

Transmission Method

6-axis servo screw + switching board (synchronous belt)

Bucket Attachment

300ML
