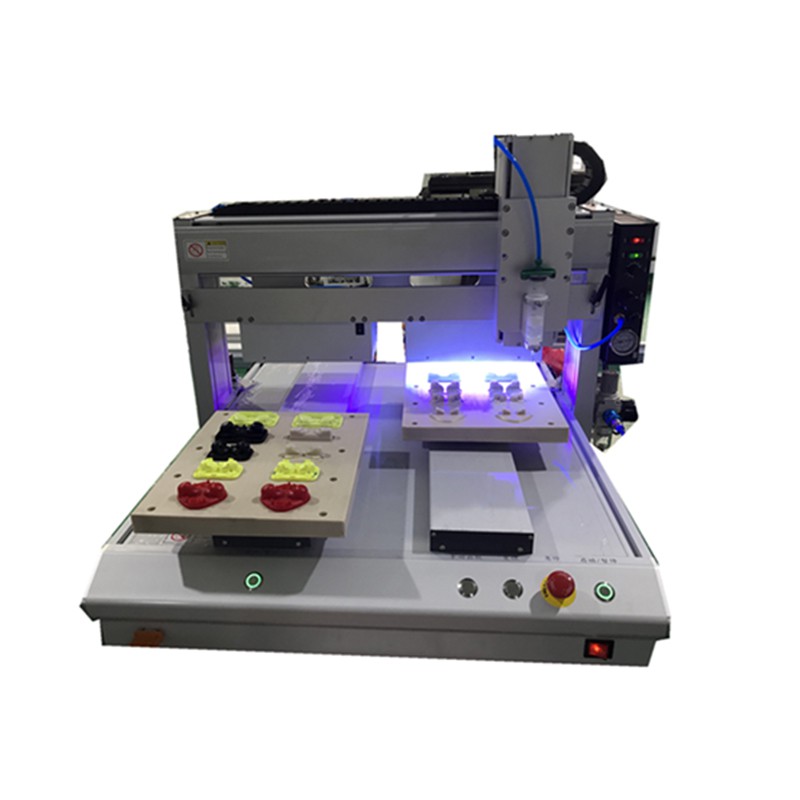

Machine Characteristics:
- Humanized design, convenient programming, easy to learn and use.
- The UV glue dispenser can produce dispensing effects of different shapes, such as dots, lines, curves, etc.
- This intelligent machine supports staff to set the required dispensing graphics and specific parameters on it.
- It has 2GB of MiniSD file storage, which can store nearly 10000 dispensing solution data.
- The staff can set parameters such as glue amount, silicone thickness, dispensing speed, dispensing time, and stop time in the equipment system.
- This device has good compatibility and can import file formats such as NC, AI, DXF, BMP, etc.
UV Glue Dispenser Advantages:
- Molded aluminum material construction, with beautiful and consistent appearance
- CNC machining ensures precision and consistency of parts
- High speed operation with low noise
- Modular assembly process, damaged parts can be quickly replaced
|
Product Name |
Dual Station Single Head UV Dispensing Machine | Dual Station Dual Head UV Dispensing Machine | Single Station Single Head UV Dispensing Machine | Single Station Dual Head UV Dispensing Machine | Four Axis Single Head UV Dispensing Machine | Four Axis Dual Head UV Dispensing Machine |
|
Machine Type |
CZ-2YUV01 |
CZ-2YUV02 |
CZ-3ZUV01 |
CZ-3ZUV02 |
CZ-4ZUV01 |
CZ-4ZUV02 |
|
Machine Range X/Y/Z (mm) |
01 |
01 |
01 |
01 |
01 |
01 |
|
500/300/300/100 |
500/300/300/100 |
300/300/100 |
300/300/100 |
300/300/100 |
300/300/100 |
|
|
600/300/300/100 |
600/300/300/100 |
|
|
|
|
|
|
02 |
02 |
02 |
02 |
02 |
02 |
|
|
500/400/400/10 |
500/400/400/100 |
400400/100 |
4001400/100 |
400/400/10O |
400/400/10O |
|
|
600/400/400/100 |
500/400/400/100 |
|
|
|
|
|
|
03 |
03 |
03 |
03 |
03 |
03 |
|
|
500/500/500/100 |
500/500/500/100 |
500/500/100 |
500/500/100 |
500/500/100 |
500/500/100 |
|
|
600/500/50/100 |
600/500/500/100 |
|
|
|
|
|
| Maximum Load |
8kg/4kg |
|||||
| Movement Speed |
0.1-400(mm/sec) |
|||||
|
Repeatability |
±0.01mm/300 |
|||||
|
Program Capacity |
1000 sets, (supports USB flash drive COPY) |
|||||
|
Motor |
Imported Micro-Stepping Ultra-Precision Motor |
|||||
| Running Effect |
Point-to-point continuous line segment/point, line, circle, arc |
|||||
| Driving Mode |
Synchronous belt + precision linear guide |
|||||
|
Interpolation Function |
Point, line, arc interpolation |
|||||
|
Grouping Mode |
teaching box |
|||||
|
1/O Signal |
25 Outputs / 2s outputs |
|||||
|
Power Input |
AC110V/220V 200WInternal switch conversion |
|||||
|
Operating Temperature |
5-40℃ |
|||||
|
Operating Humidity |
20-90 |
|||||
|
The Device Size L/W/H |
01 |
01 |
01 |
01 |
01 |
01 |
|
580*600*580 |
580*600*580 |
450*600*580 |
450*600*580 |
450*600*580 |
450*600*580 |
|
|
680*600*580 |
680*600*580 |
|
|
|
|
|
|
02 |
02 |
02 |
o2 |
02 |
o2 |
|
|
580*700*580 |
580*700*580 |
550*700*580 |
550*700*580 |
550*700*580 |
550*700*580 |
|
|
680*700*580 |
680*700*580 |
|
|
|
|
|
|
o3 |
o3 |
o3 |
03 |
o3 |
o3 |
|
|
580*800*580 |
580*800*580 |
650*800*580 |
650*800*580 |
650*800*580 |
650*800*580 |
|
|
680*800*580 |
680*800*580 |
|
|
|
|
|
| Bucket |
300ML2600ML |
300ML2600ML |
300ML/260ML |
300ML/2600ML |
300ML/2600ML |
300ML/2600ML |
|
UV Lamp |
Customize UV lamps based on customer product dimensions, using Seoul LED chips from Korea, with fast curing speed and long lifespan. |
|||||
